125kW / 241kWh On-Grid Silent Liquid-Cooled Energy Storage System

পণ্যের বিবরণ

উৎপত্তি স্থল: চীন

পরিচিতিমুলক নাম: Battlink

সাক্ষ্যদান: CE MSDS UN

মডেল নম্বার: BATT-CI-125/241-L

নথি: [Product Profile] [EN] [BAT...SS.pdf

পেমেন্ট ও শিপিংয়ের শর্তাবলী

ন্যূনতম চাহিদার পরিমাণ: 1

প্যাকেজিং বিবরণ: কাঠের বাক্স

ডেলিভারি সময়: 35

যোগানের ক্ষমতা: প্রতি মাসে 1000pcs

সেরা দাম পান
পণ্যের বিবরণ
বিশেষভাবে তুলে ধরা:
উপকরণ:
এলএফপি
শক্তি:
241kWh
রেট পাওয়ার:
125 কিলোওয়াট
আবেদন:
বাণিজ্যিক ও শিল্প ভবন · কারখানা · অফিস পার্ক · গ্রিড-সংযুক্ত পুনর্নবীকরণযোগ্য শক্তি সিস্টেম
উপকরণ:
এলএফপি
শক্তি:
241kWh
রেট পাওয়ার:
125 কিলোওয়াট
আবেদন:
বাণিজ্যিক ও শিল্প ভবন · কারখানা · অফিস পার্ক · গ্রিড-সংযুক্ত পুনর্নবীকরণযোগ্য শক্তি সিস্টেম
পণ্যের বর্ণনা

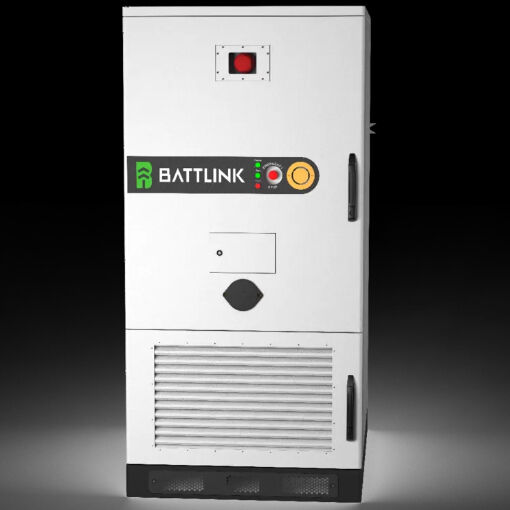

125kW / 241kWh On-Grid Silent Liquid-Cooled Energy Storage System

The 125kW / 241kWh On-grid Energy Storage System features advanced liquid-cooling technology to ensure stable performance with ultra-low noise operation, making it suitable for commercial and industrial applications, even in noise-sensitive environments.With a compact and integrated design, the system minimizes installation space while delivering high power output for peak shaving, load shifting, and energy optimization.


Product features:


  • Ultra-Low Noise Operation:Advanced liquid-cooling technology significantly reduces operational noise, making the system ideal for noise-sensitive environments such as commercial buildings, residential-adjacent sites, and urban installations.
  • Compact & Space-Saving Design: High energy density and integrated system architecture reduce footprint, allowing flexible installation and lower civil-work costs.
  • High Performance On-Grid Out:Supports peak shaving, load shifting, self-consumption optimization, and grid-interactive applications.
  • CE Certified & Europe-Ready:

    Fully compliant with CE safety and EMC requirements, ensuring high reliability and regulatory acceptance in the European market.

  • European Grid Compliance Advantage
    Designed to meet grid-connection requirements in major European countries (including Germany, France, Italy, Spain, and others), simplifying project approval and reducing commissioning time.
  • High Reliability & Long Lifecycle
    Liquid cooling ensures uniform thermal management, extending battery lifespan, improving system stability, and reducing maintenance frequency.
Parameter BATT-CI-125/241-L
Application On-grid
Cell Type LFP 3.2V / 314Ah
Battery Module 48S1P / 48.23kWh
System Configuration 240S1P
Rated Voltage 768V
Voltage Range 648–864V
System Energy 241.15kWh
Charge / Discharge Rate 0.5P
Cycle Life ≥7000 cycles
Rated Power 125kW
Rated Voltage 400V
Rated Current 181A
Operating Frequency 50Hz / 60Hz
Power Factor 1 Leading ~ 1 Lagging
System Efficiency 88%
Thermal Management Liquid-cooled
Fire Protection Aerosol / Perfluorohexanone
Operating Temperature -20 ~ +55°C (>45°C derating)
Operating Humidity 0–95% (non-condensing)
Operating Noise ≤75 dB(A) @ 3m
Max. Altitude 4000m (>2000m derating)
Ingress Protection IP54
Communication Ethernet
Weight 2.46T
Dimensions (W×D×H) 1040 × 1440 × 2154 mm

Why Choose This System

✔ Low noise, suitable for urban environments
✔ Small footprint, easy integration
✔ CE certified, Europe-focused design
✔ Fast grid approval and deployment
✔ Stable, efficient, long-term operation
